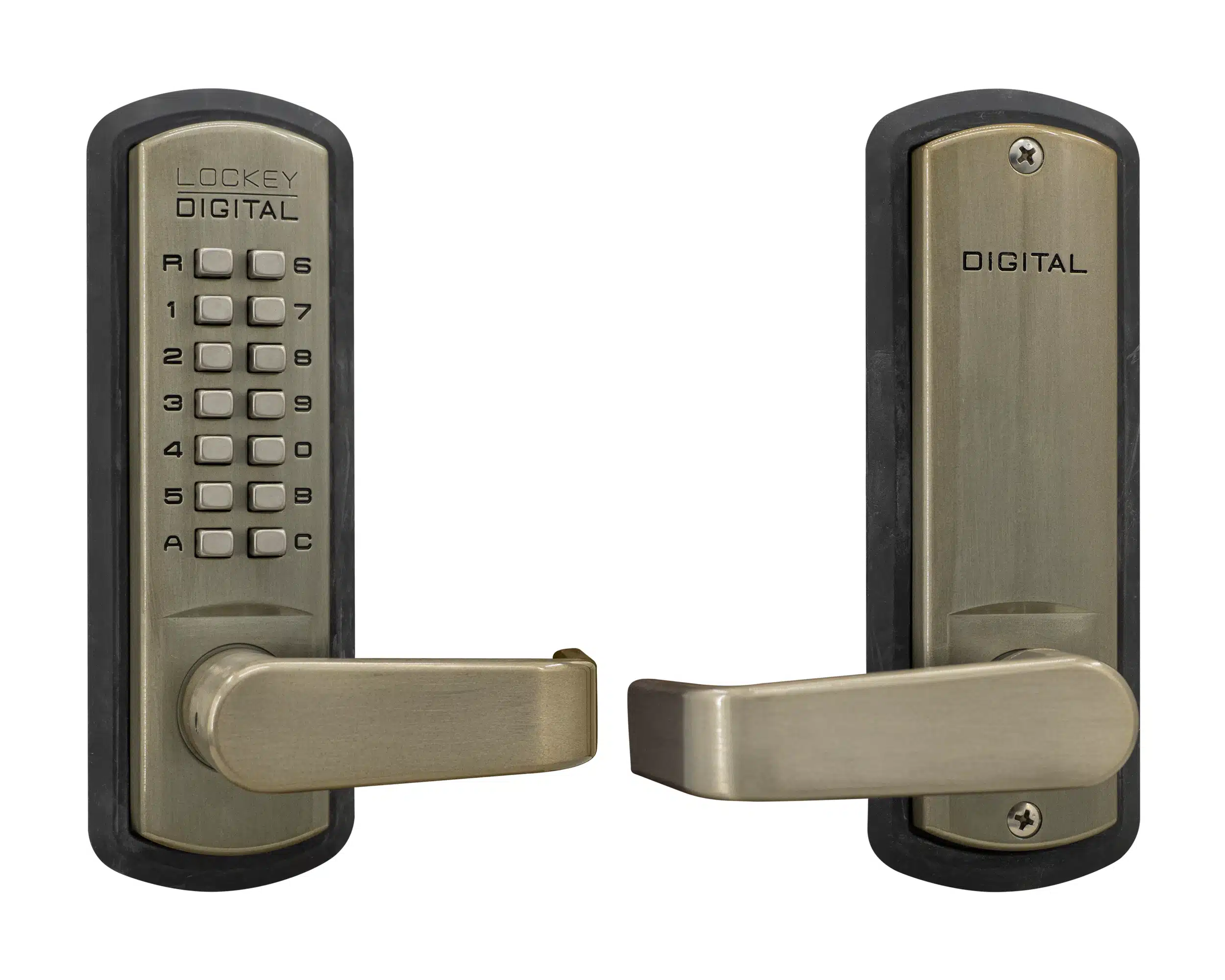

3835 Mechanical Keyless Lever Lock with Passage Function

Features

• Mechanical, keyless deadlocking spring latch
• One user code
• Auto-locking with passage function
• Lever on exterior and interior
• Reversible handing
• Adjustable backset
• Covers standard 2 1/8” hole

Options

• Keypad: Single Combination, Double Combination (DC)
• Finishes: Jet Black (JB) Marine Grade (MG), Satin Chrome (SC)

Dimensions & Specifications

• Dimensions: 6 5/16” L x 1 3/4” W x 2 1/4″ D
• Total Coverage with Trim Plates: 7” L x 2 1/4” W
• Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
• Material: Zinc-plated steel
• Teflon coated stainless steel interior components
• For Exterior & Interior Use
• Weather Resistant
• Lifetime Mechanical Warranty

Compatible With

• GB2500 Gate Box
• Extension Kit
