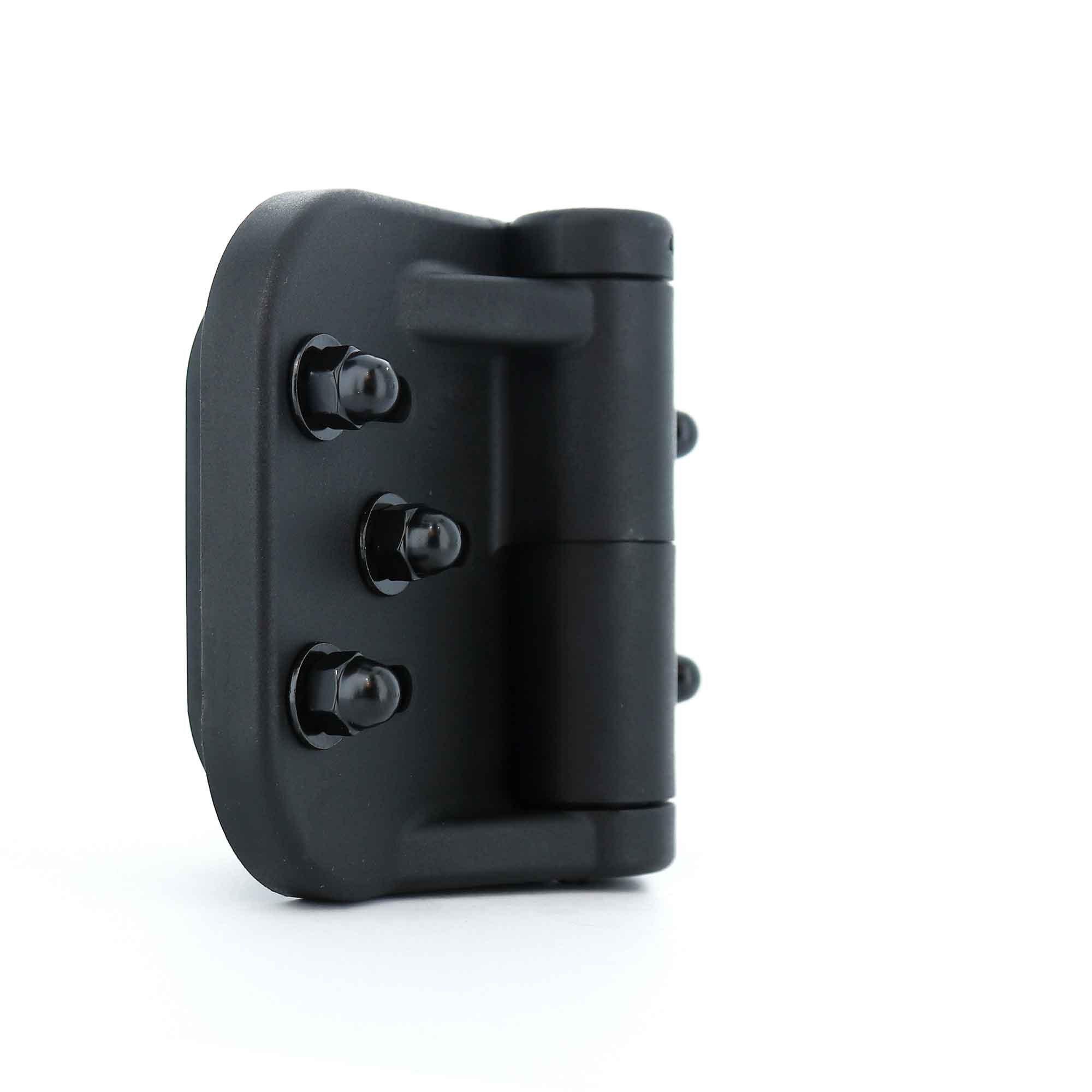

Cornerstone® Fully-Adjustable Hinge

CH300F

Cornerstone® Fully-Adjustable Hinges – An ideal choice for a very strong, easy-to-install and cost-effective self-closing hinge. Million Cycle Warranty

Specifications

The durability of glass-filled nylon along with high quality manufacturing and design, make the Cornerstone® an ideal choice when you are searching for a very strong, easy-to-install and cost-effective self-closing hinge. With a variety of options available, you will be assured that you have the right hardware for the right application.

• Heavy Duty Commercial Grade Design

• Glass-filled nylon construction for superior strength, durability and low maintenance

• No rusting or staining

• Available in Black or White

You choose the screws: Self-drilling stainless screws for applications in aluminium or self-drilling zinc plated steel screws for applications in steel

• Back plates allow horizontal and vertical adjustability

• Both flanges: 4.25″ (H) x 2.88″ (W) x 1.50″ (D)

• Produced with durable glass-filled nylon

• Point-load tested over 1500 lbs per pair

• 1/4″ Allen wrench included for tension adjustment

• 20 pair per case @ 42lbs

Available Part Numbers

CH300F: Ch300F
CH300F-BK: Cornerstone, Black
CH300F-NS-BK: Cornerstone, Black
CH300F-NS-WH: Cornerstone, White
CH300F-SD-BK: Cornerstone, Black
CH300F-SD-WH: Cornerstone, White
CH300F-WH: Cornerstone, White
